Product No.3029
Posted under:

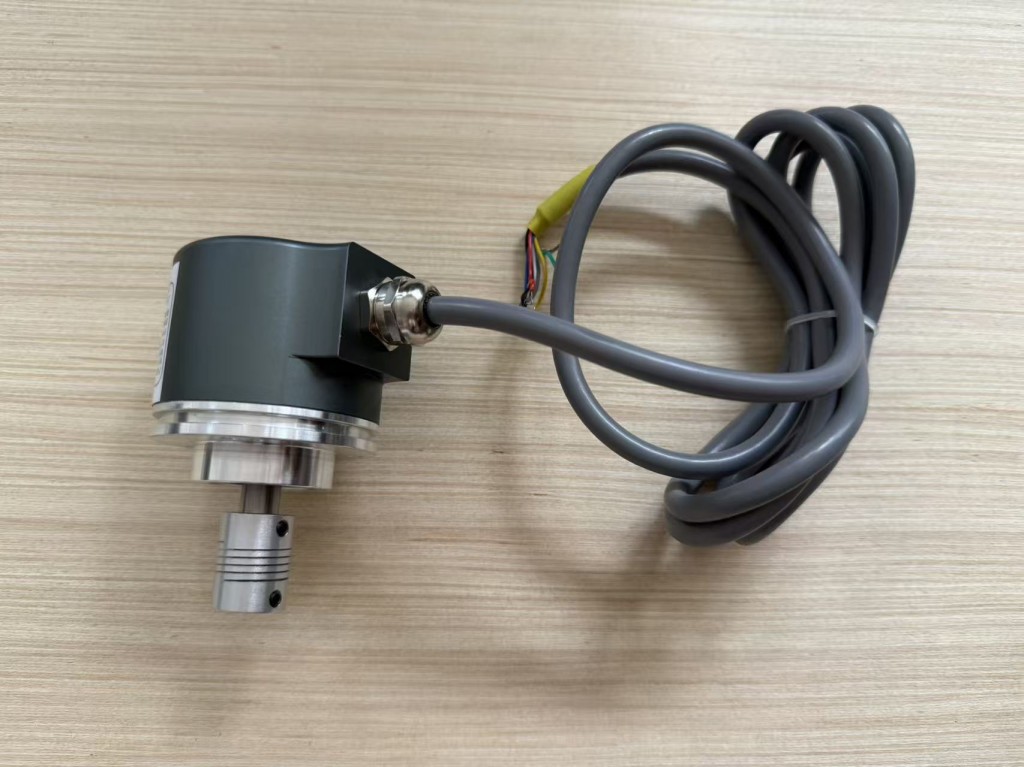

Explosion‑proof rotary encoder：
Robust standard industrial grade with high reliability,
long service life and strong anti‑interference performance.
Available outputs: push‑pull
complementary, RS422 long‑line driver, open‑collector. High bearing load capacity, oil‑proof and water‑resistant. Rugged metal housing for superior shock resistance.
| Electrical Parameters | ||
| No. | Type | Parameter |
| 1 | Supply Voltage | 5～30V |
| 2 | Output Mode | TTL |
| 3 | Pulse Number | 0～5000pulses |
| 4 | Maximum Frequency | 100KHz |
| 5 | Operating Temperature | -30℃～80℃ |
| 6 | Protection Rating | IP64 |
| 7 | Maximum Rotational Speed | 3000max |
| 8 | Marking | Ex ib IIC T6 Gb |
